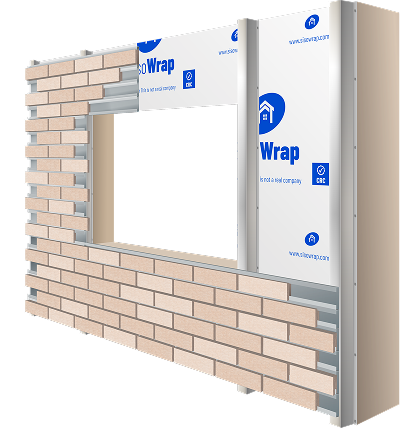

Nexbrick™ is a lightweight mechanically fixed brick facade system. 25mm real brick slips engage into a dual-engagement Australian-made steel rail — no mortar required. Any brick, any supplier, any orientation. 55kg/m² total system weight installs up to 4× faster than traditional bricklaying.
Discuss Your ProjectPrepare the structural substrate (steel frame, concrete, or masonry backing). Confirm fixing points meet Nexbrick™ structural loading specifications.
Fix the dual-engagement steel rail to the substrate at specified centres. Rails are Australian-made and supplied by Modular Masonry Group.
Engage 25mm real brick slips into the dual-engagement rail from both contact points. No mortar or adhesive required for the brick-to-rail connection.
Assemble as prefabricated panels offsite (crane-lifted) or install onsite. Prefab panels offer the fastest install time.
Apply EasyPoint Mortar or specified joint compound. Compatible with any brick supplier and any standard pointing product.
Nexbrick™ is mechanically fixed, enabling brick to be installed upside-down on soffits and undersides — structurally impossible with mortar.
Custom jigs and the rail system’s flexibility allow complex curves to be executed with standard brick slips.
Standard installation at 4× the speed of traditional bricklaying with factory-controlled quality.
Purpose-built corner profiles and custom-angle rails handle any geometric requirement.
| Nexbrick™ | Traditional bricklaying | |
|---|---|---|
| Install speed | Up to 4× faster | Baseline |
| System weight | 55 kg/m² | ∼180–220 kg/m² |
| Labour on-site | Minimal — crane-lift panels | High — wet trades |
| Weather dependency | None (offsite fabrication) | High |
| Design flexibility | Any orientation, any form | Limited |
A brick slip system uses thin brick facings (20–25mm) fixed to a carrier rail rather than full-depth bricks laid in mortar. Nexbrick™ uses 25mm real brick slips on a dual-engagement steel rail at 55kg/m².
Each brick slip clips into the dual-engagement steel rail from two contact points. No mortar or adhesive required for the brick-to-rail connection.
Yes. Nexbrick™ handles soffits, curved facades, complex corners, and custom angles in any brick orientation — impossible with traditional mortar masonry.
Up to 4× faster installation. Factory panel assembly, crane-lift into position, no wet trades on site. Competitive installed cost when scaffolding and labour savings are included.
Yes. Nexbrick™ meets NCC 2025 requirements for mechanically fixed facade systems including structural connections, fire safety, and waterproofing.
